CP-3102M

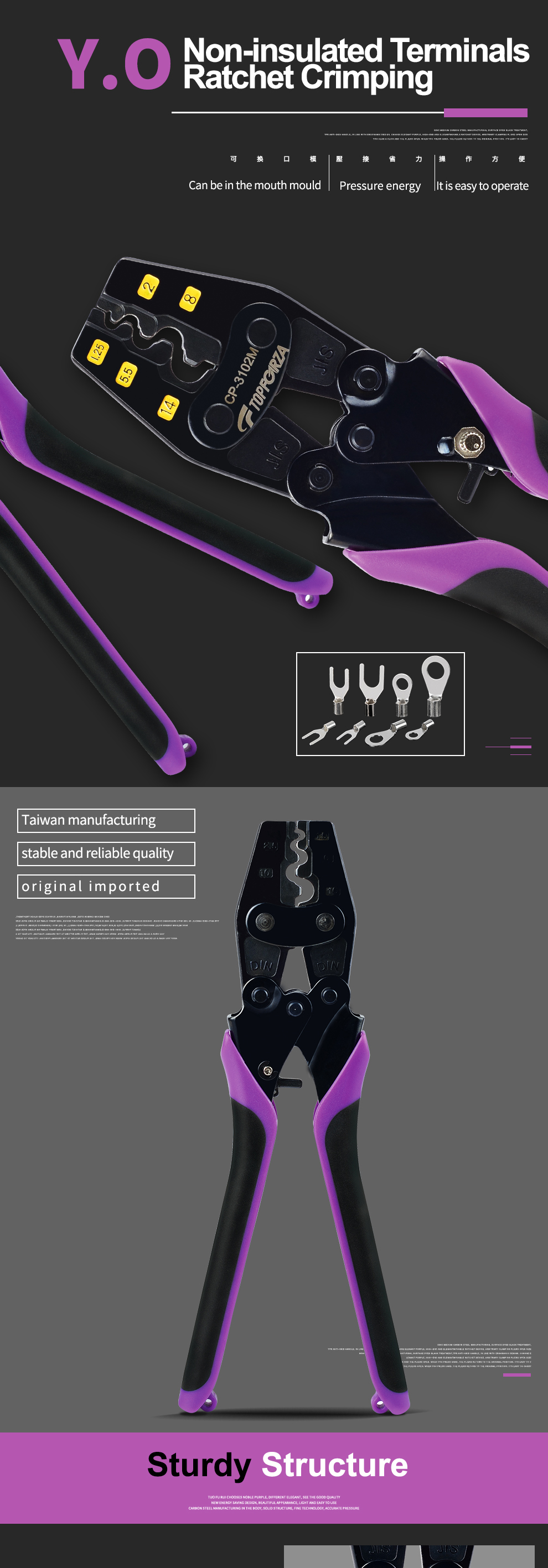

NON-INSULATED TERMINALS RATCHET CRIMPING TOOL
  • Taiwan R&D and manufacturing, stable and reliable quality
  • New ratchet structure design, over 35% labor-saving more than traditional crimping pliers
  • The body is stamped with S50C steel plate, which structure is sturdy and durable.

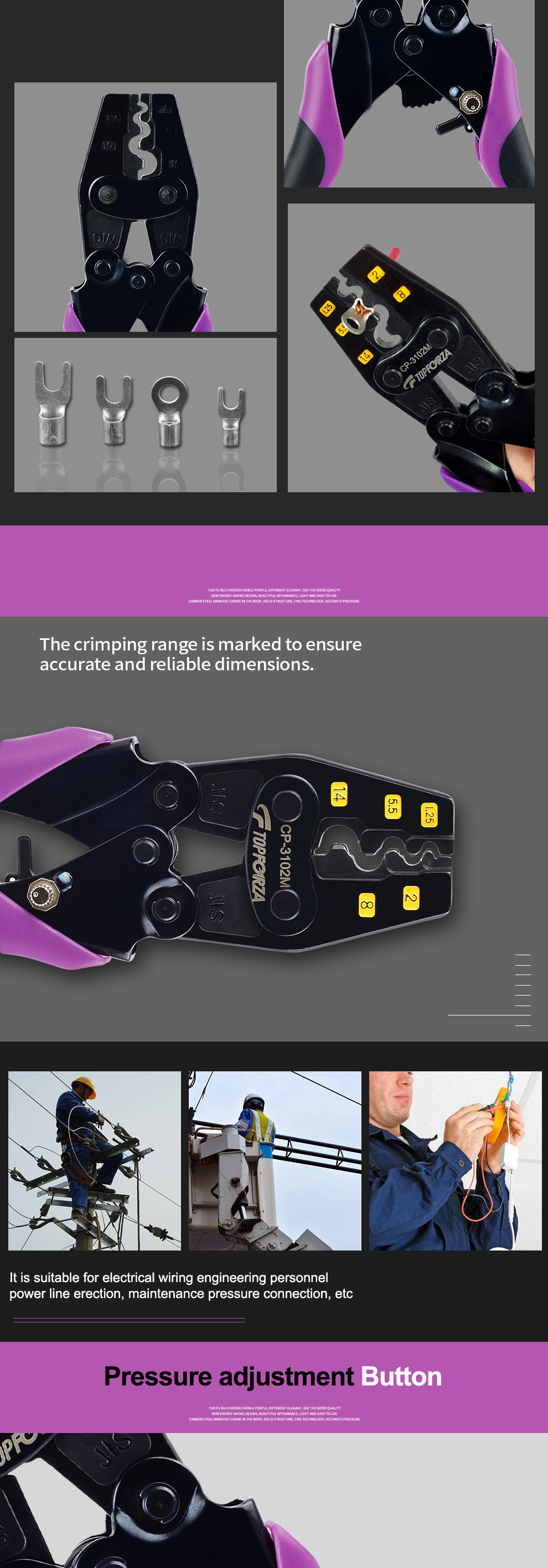

  • The crimp die is AISI 4140 alloy steel, marked with crimping range, ensure size accurate and reliable.

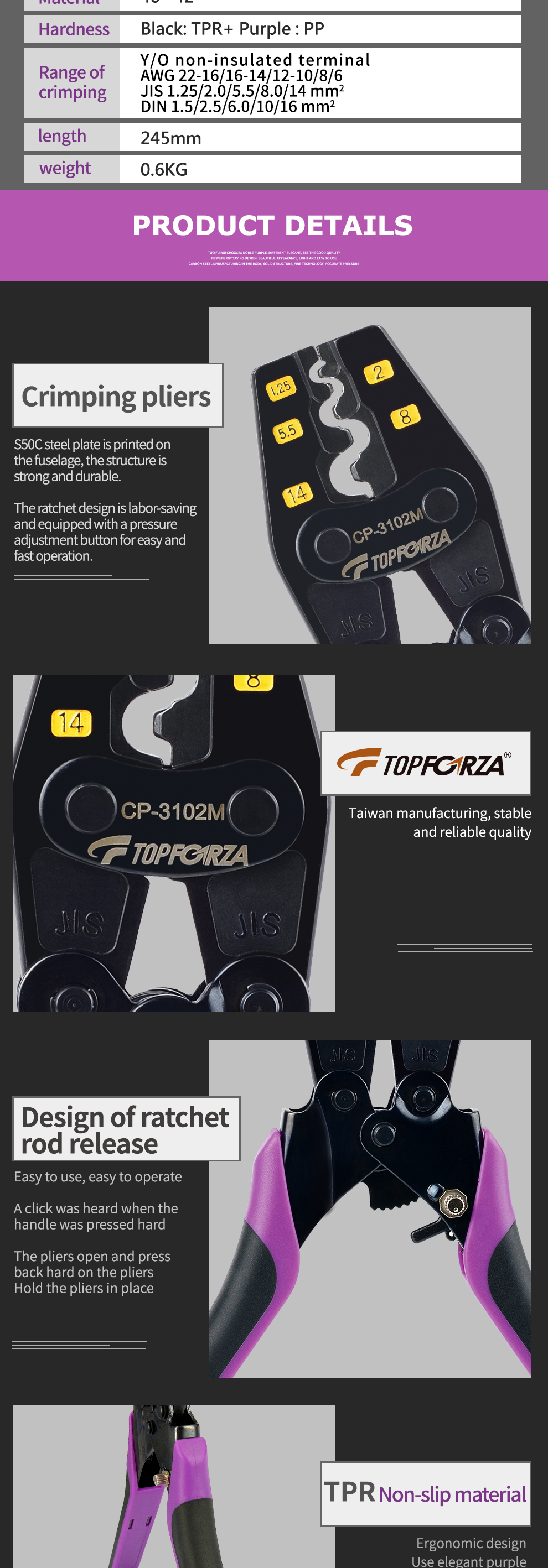

  • Ratchet force-saving design, which equip with pressure adjustment button, convenient and fast operation
  • Design with ratcheting safety lock release trigger to ensure safe operation
  • The handle is made of bicolor TPR material, which is non-slip, comfortable and durable.
  • Operation crimp range 1.25/2.0/5.5/8.0/14mm² Y.O non-insulated terminal
  • Length: 245mm

  • Applied field

             Y/O non-insulated terminal:

            AWG 22-16/16-14/12-10/8/6
            JIS 1.25/2.0/5.5/8.0/14 mm2
            DIN 1.5/2.5/6.0/10/16 mm2

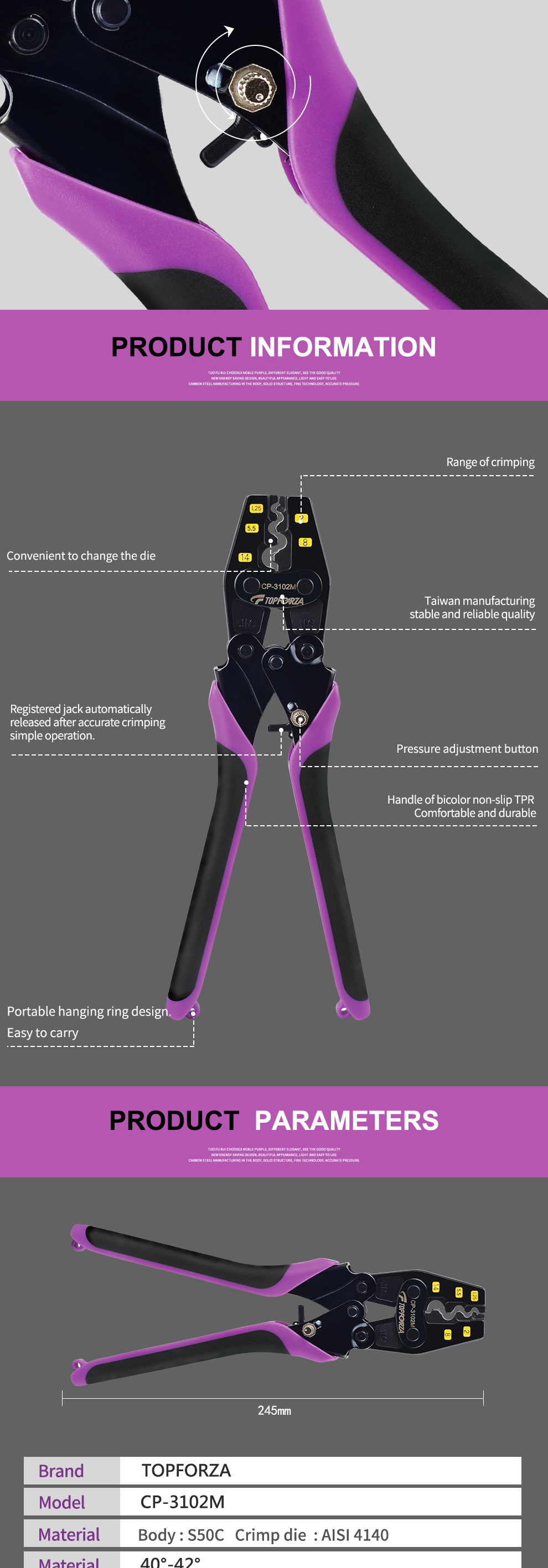

  • Material

            Body : S50C

            Crimp die : AISI 4140

            Hardness : HRC40˚- 42˚

            Handle : TRP+PP

            Length : 245mm
