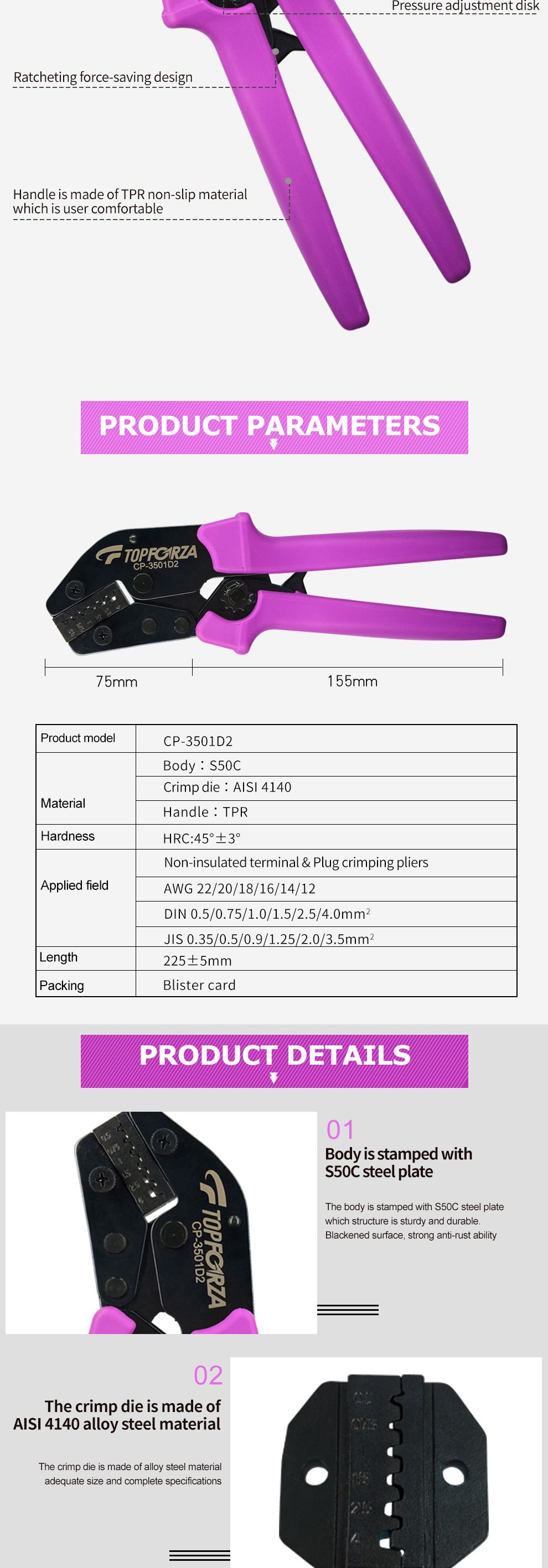

CP-3501D2
INSULATED TERMINAL CRIMPING TOOL
  • Taiwan R&D and manufacturing, stable and reliable quality

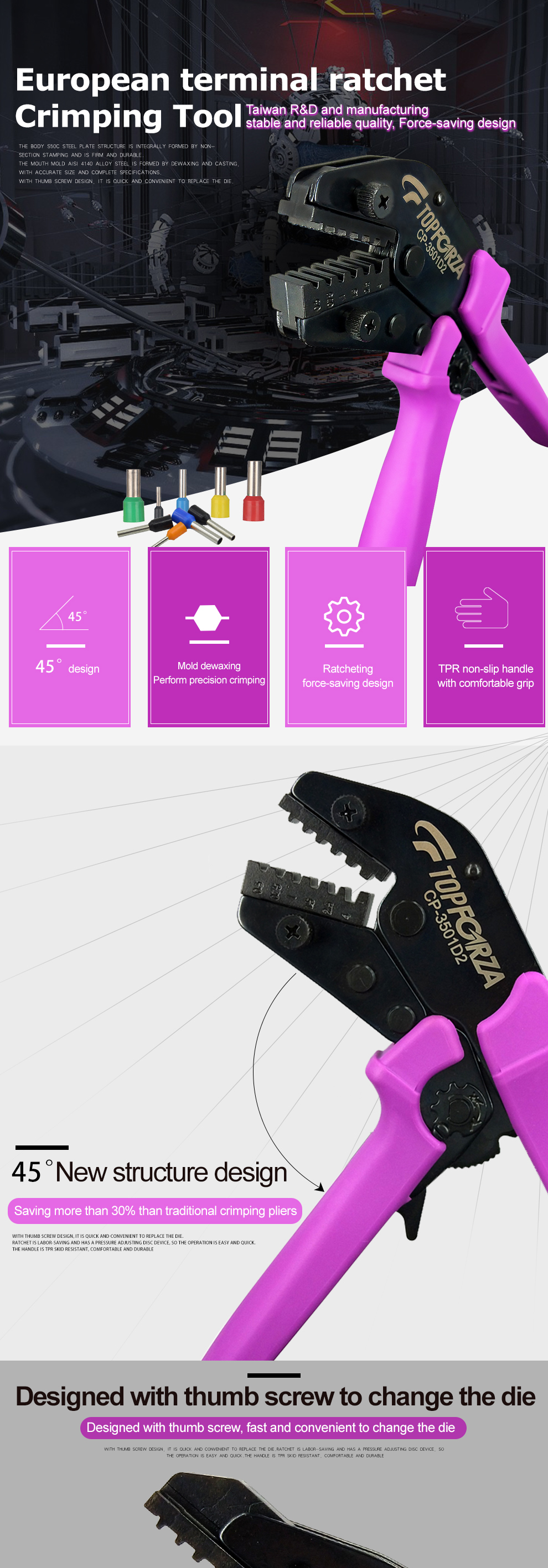

  • New structure design with 45 degree angle, over 30% labor-saving more than traditional crimping pliers
  • The body is stamped with S50C steel plate, which structure is sturdy and durable.

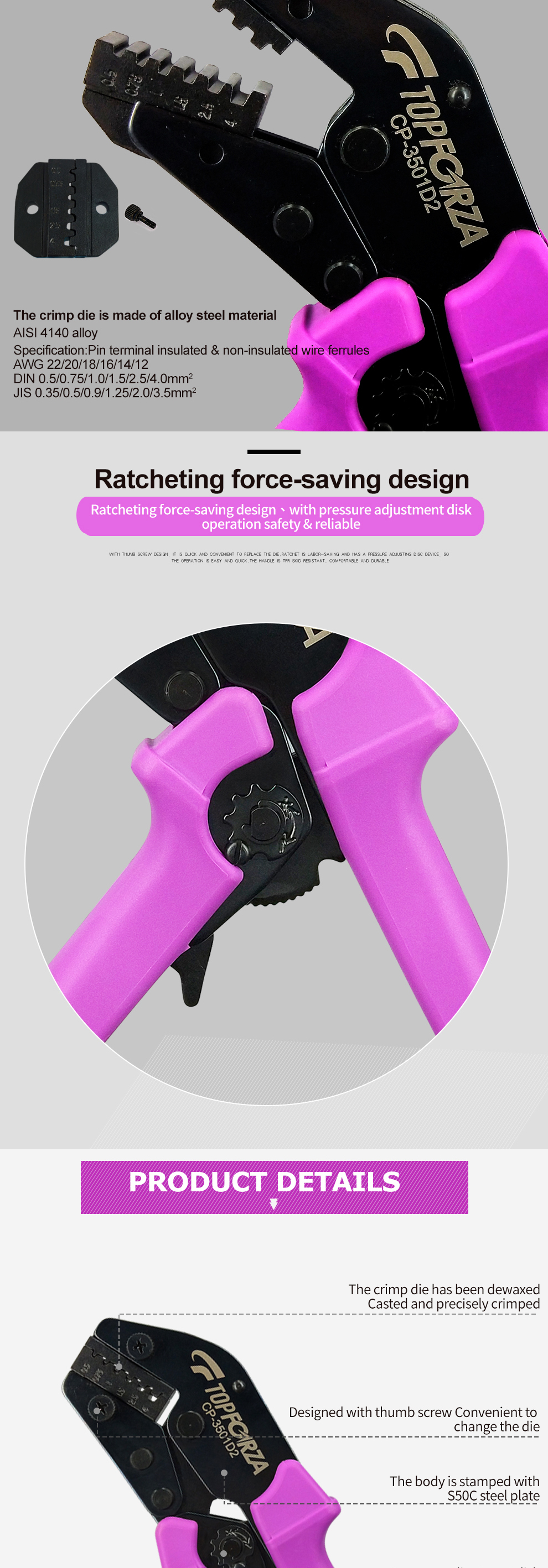

  • 4.The crimp die is made of AISI 4140 alloy steel material, adequate size and complete specifications
  • Designed with thumb screw, fast and convenient to change the die

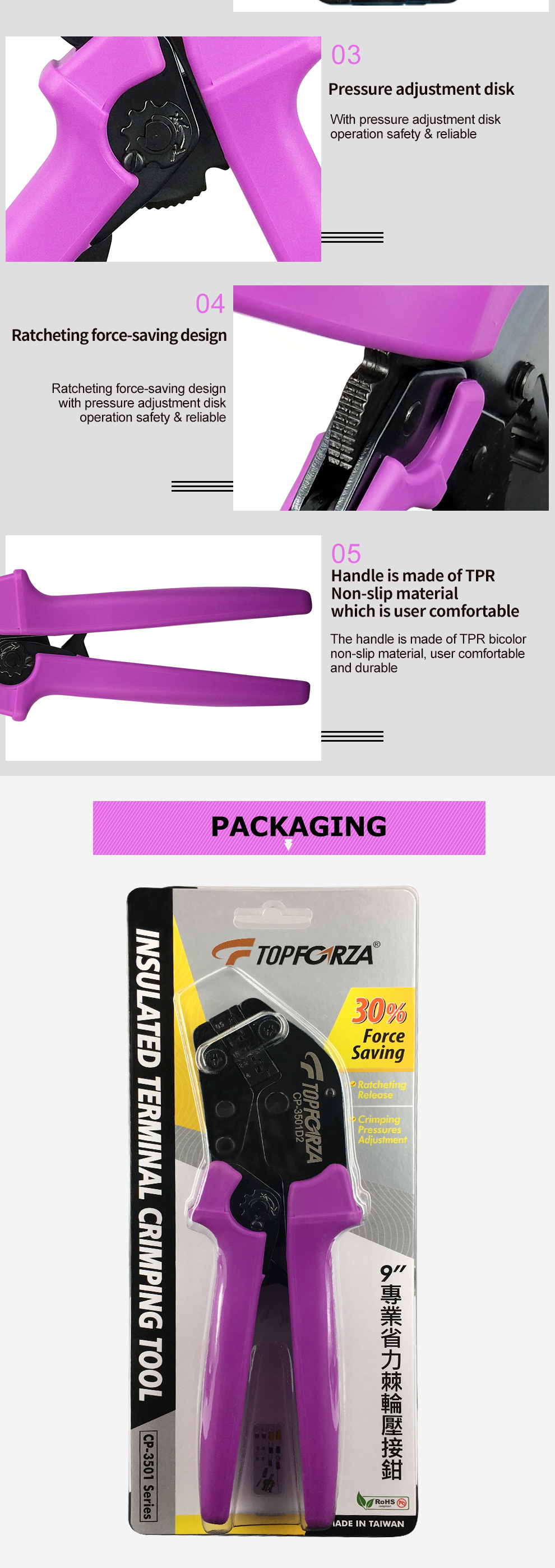

  • Ratcheting force-saving design with pressure adjustment disk, operation safety & reliable.
  • The handle is made of TPR bicolor non-slip material, user comfortable and durable.
  • Length: 225±2mm

  • Applied field：
     Insulated pin terminal & non-insulated tubular terminal crimping pliers
    AWG 22/20/18/16/14/12
    DIN 0.5/0.75/1.0/1.5/2.5/4.0mm2
    JIS 0.35/0.5/0.9/1.25/2.0/3.5mm2
  • Material：S45C
  • Handle：TPR
  • Hardness：HRC45˚±3˚
  • Length：225±2mm
