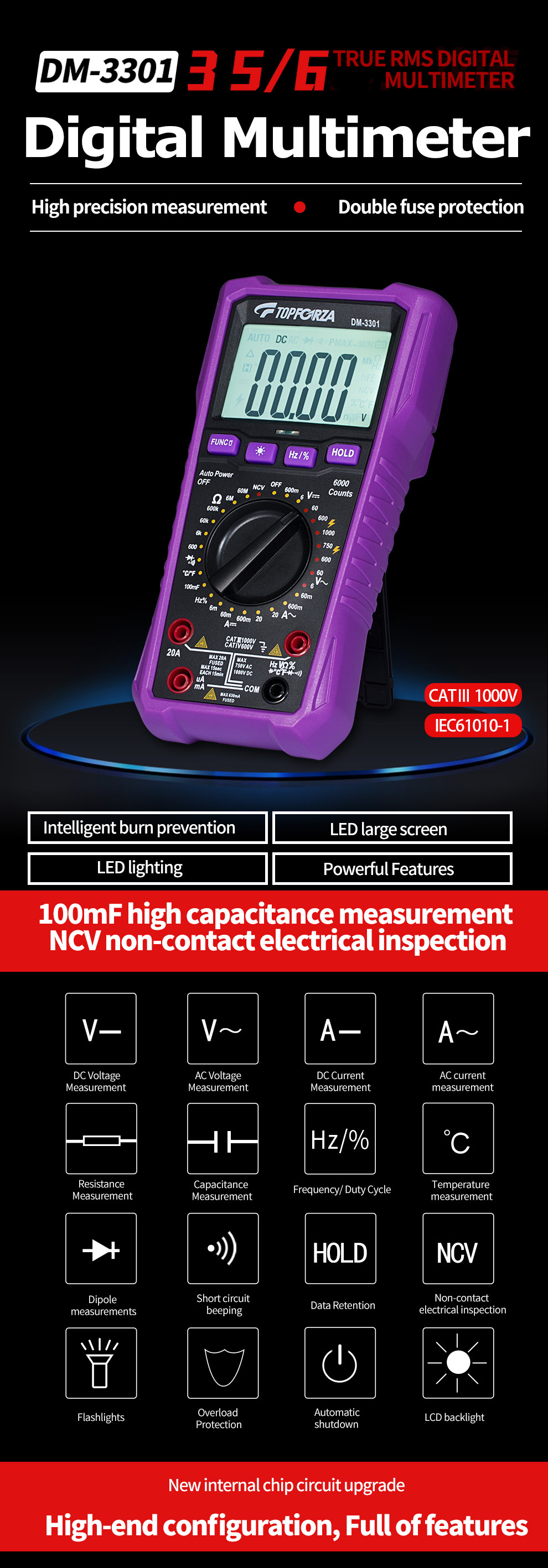

DM-3301
3 5/6 TRUE RMS  DIGITAL MULTIMETER
  • Manual range, clear gear position, high precision, and small error range
  • Clear backlight display, data retention, built-in anti-burn fuse, and low battery voltage reminder
  • CATIII 1000V and IEC61010-1 certified
  • Large screen LCD 60*38mm size panel and high brightness backlight are easy for users to read parameters.
  • It is used to measure AC/DC voltage, AC/DC current, resistance, diode, continuity test/short circuit beep, frequency/temporary ratio measurement, NCV non-contact inspection, capacitance measurement, temperature measurement. Besides, it is also designed with symbol display, manual range conversion, automatic power off and alarm function, automatic shutdown, data retention, LED backlight function, relative value measurement, battery low voltage indication, automatic recovery fuse protection, shockproof casing, flashlight, etc.
  • Contain CATIII certified test lead, thermocouple, and AAA battery(4 pieces)
  • User-friendly design. The meter case is attached with a test lead fixed port, which can be operated by one hand. Thus, the test lead is not going to fall off easily.
  • The meter can be placed flat, hangable, and erected for a wide range of place.
  • Multifunction, which is suitable for home, engineering, factory, etc.

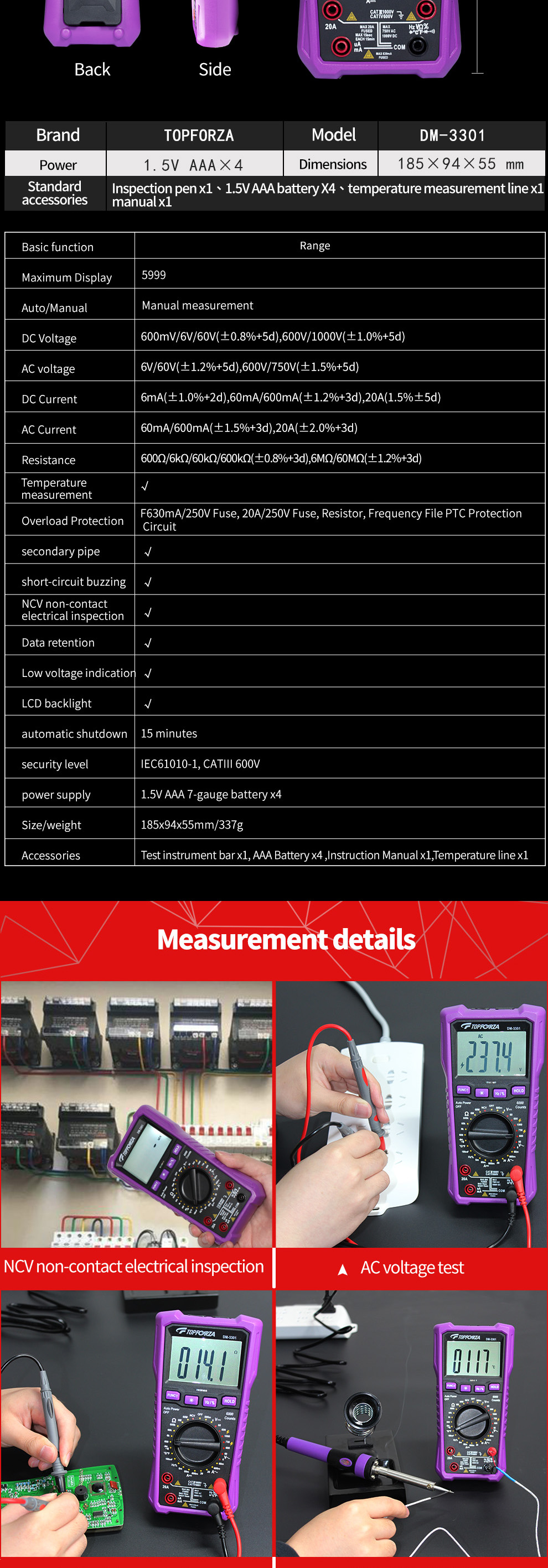

  • Digits:5999
  • Auto/Manual: Auto Range
  • DC voltage:600mV/6V/60V(±0.8%+5d),600V/1000V(±1.0%+5d)
  • AC voltage:6V/60V(±1.2%+5d),600V/750V(±1.5%+5d)
  • DC current:6mA(±1.0%+2d),60mA/600mA(±1.2%+3d),20A(±1.5%+5d)
  • AC current:60mA/600mA(±1.5%+3d),20A(±2.0%+3d)
  • Resistance:600Ω/6KΩ/60KΩ/600KΩ(±0.8%+3d),6MΩ/60MΩ(±1.2%+3d)
  • Capacitance measurement:10nF/100nF/1000nF/10µF/100µF/1000µF(±3.0%+5d),10mF(±5.0%+5d) ,100mF(±5.0%+30d)
  • Frequency (stall V or current stall):10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/10MHz (±0.3%+5d)
  • Frequency (stall Hz):10Hz/100Hz/1KHz/10KHz/100KHz/300KHz (±0.3%+5d)
  •  Hz Duty:1%-99%(±2.0%)
  • Automatic shutdown: 15 minutes
  • Security level:IEC61010-1、 CATIII 1000V
  • Overload protection: Resistance stall as PTC
  • Size:185x94x55mm
  • Weight:337g
  • battery:1.5V AAAx4
  • Exhibition: Test lead x 1vice ,1.5V AAA battery x 4 , Instruction manual x 1
