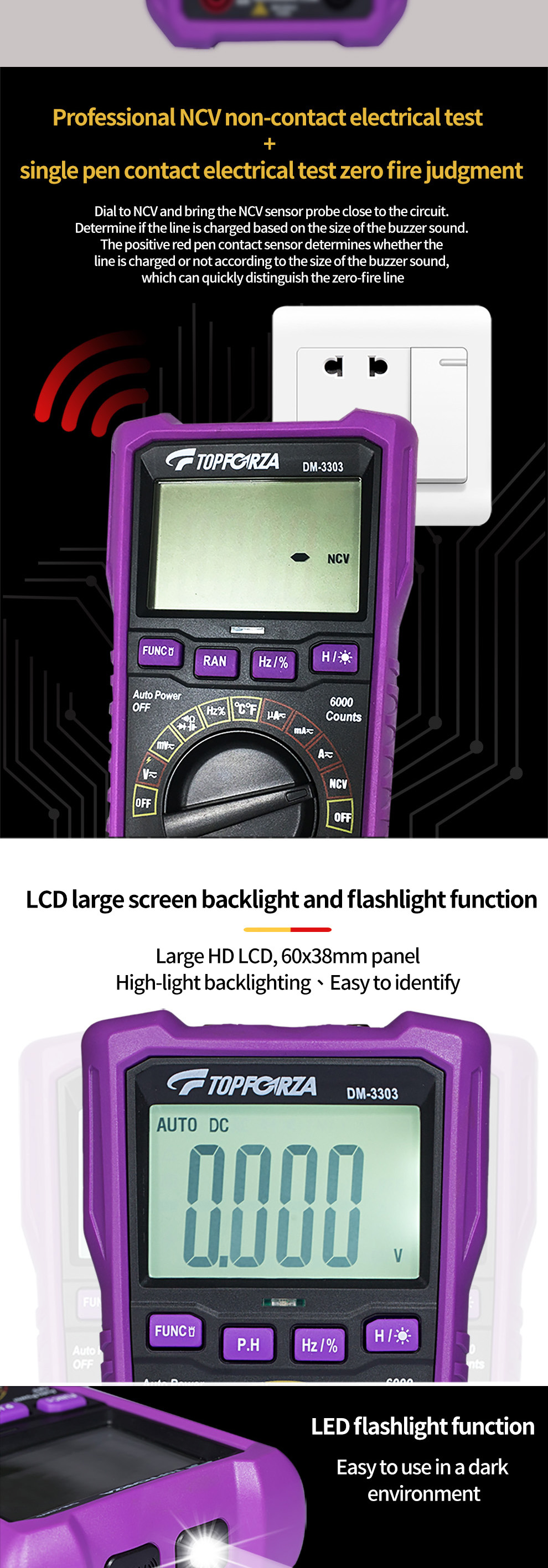

• Automated range, clear gear position, high RMS accuracy and small error range. Large screen LCD 60*38mm size panel with clear backlight display is easy for users to read parameters.

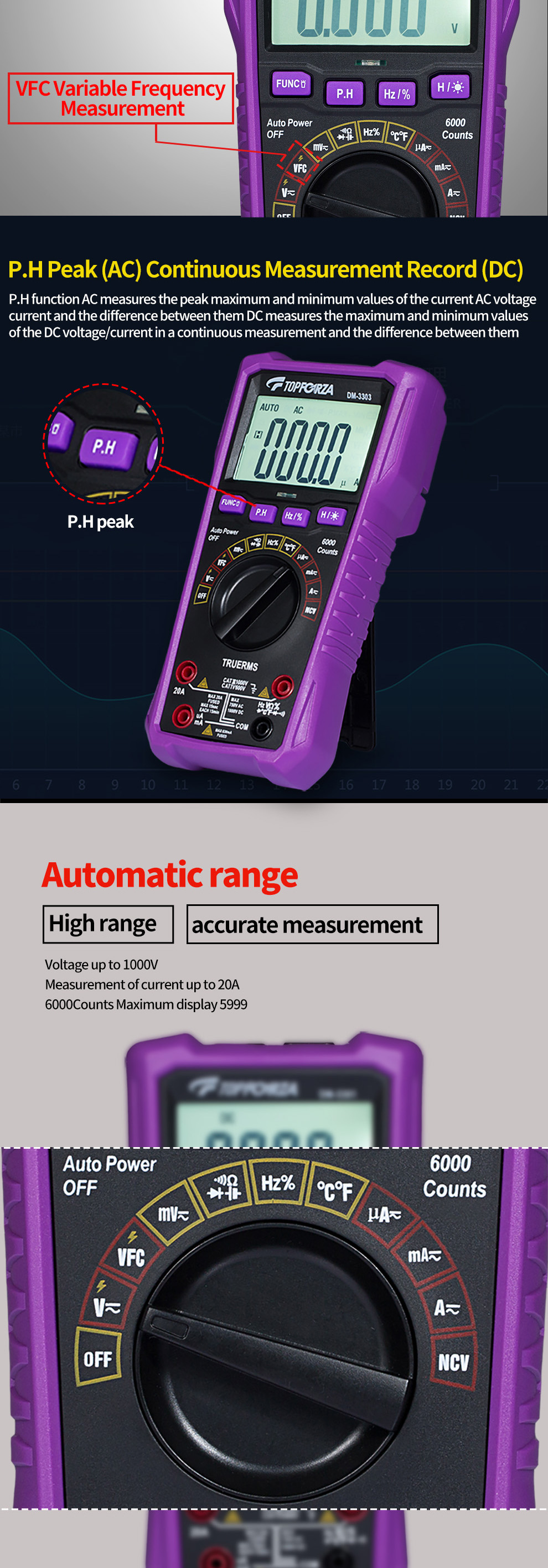

  • When P.H is in AC/DC voltage/current gear position, please press this button continuously to display the current peak maximum (PMAX) and minimum (PMIN)

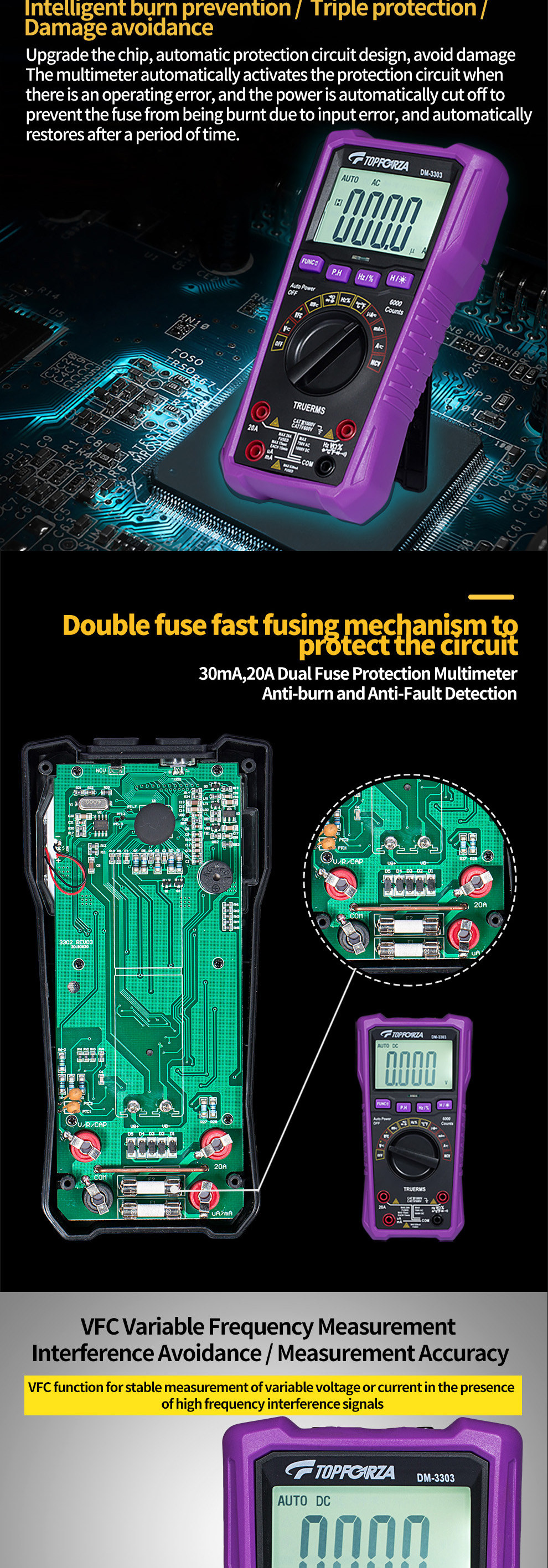

  • With VFC function, it can measure AC voltage/AC current with frequency conversion interference
  • CATIII 1000V, IEC61010-1 certified.

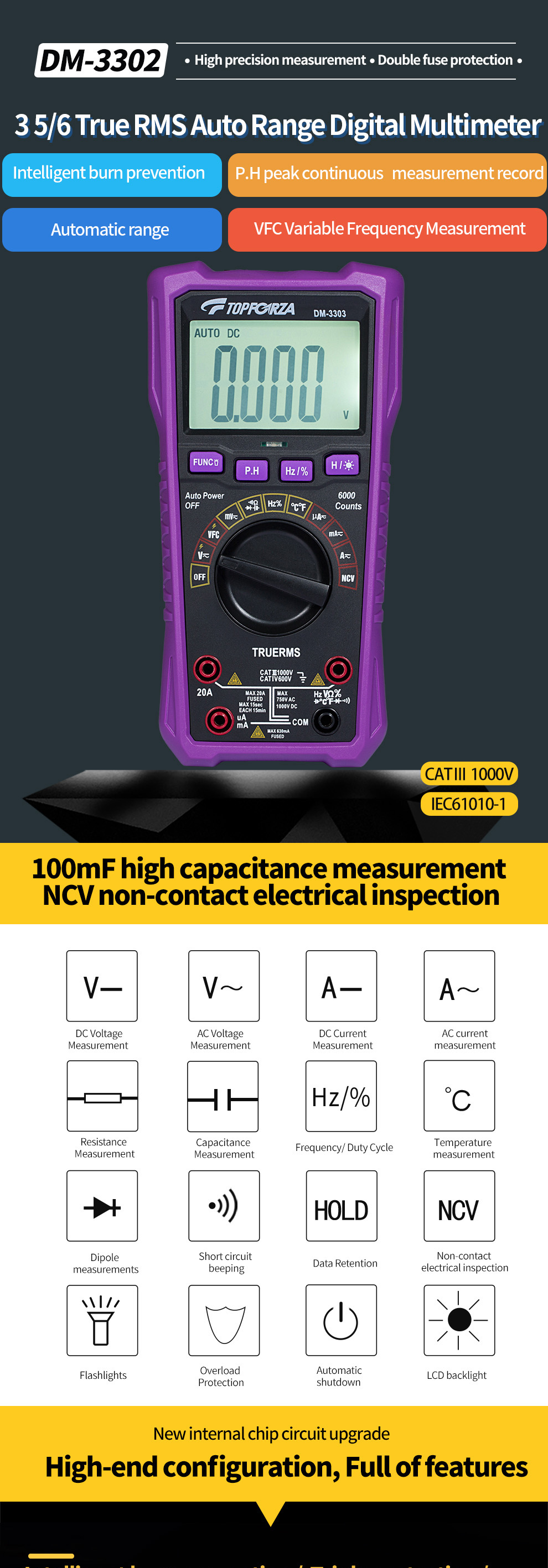

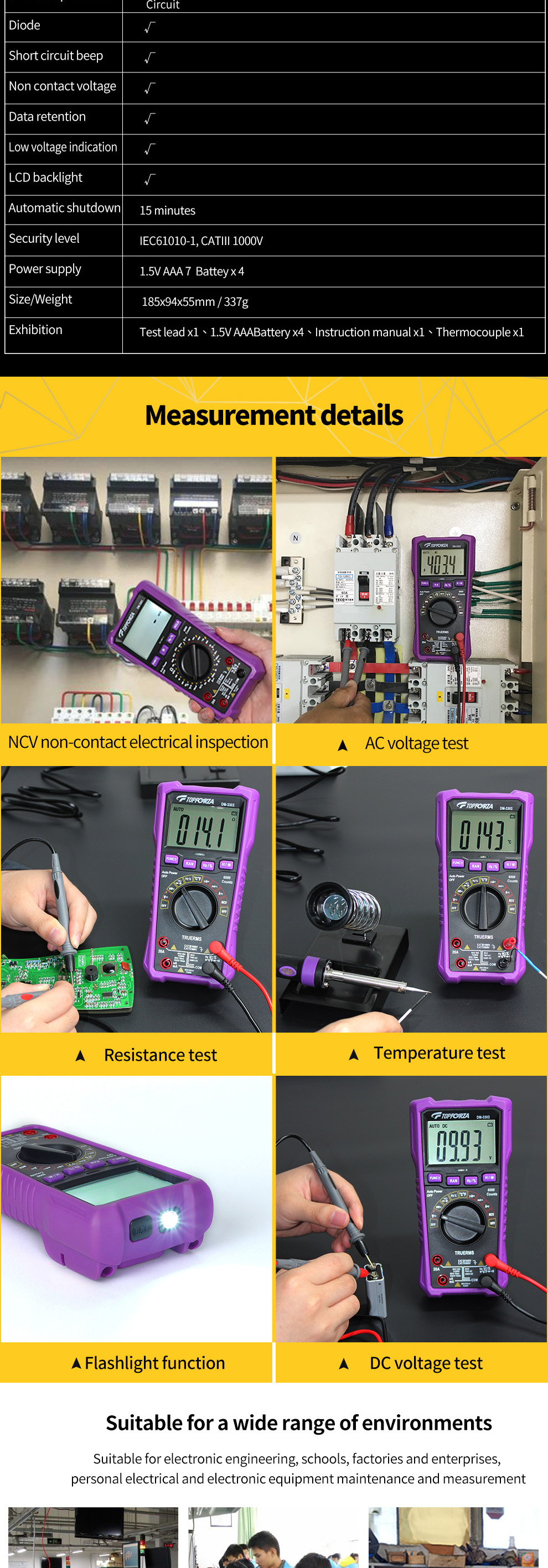

  • It is used to measure AC/DC voltage, AC/DC current, resistance, diode, continuity test/short circuit beep, frequency/temporary ratio measurement, NCV non-contact inspection, capacitance measurement, temperature measurement. Besides, it is also designed with symbol display, manual range conversion, automatic power off and alarm function, automatic shutdown, data retention, LED backlight function, relative value measurement, battery low voltage indication, automatic recovery fuse protection, shockproof casing, flashlight, etc.
  • Contain CATIII certified test lead, thermocouple, and AAA battery(4 pieces)

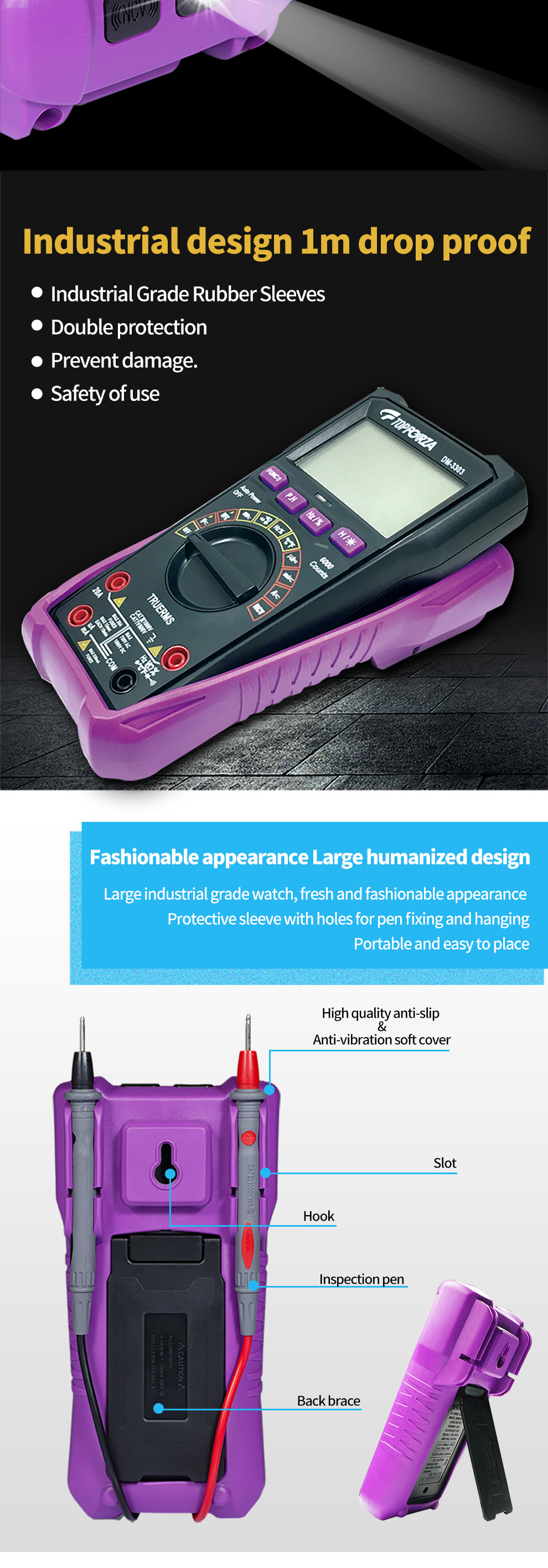

  • User-friendly design. The meter case is attached with a test lead fixed port, which can be operated by one hand. Thus, the test lead is not going to fall off easily.
  • The meter can be placed flat, hangable, and erected for a wide range of place.
  • Multifunction, which is suitable for home, engineering, factory, etc.

  •  Digits:5999
  •  Auto/Manual: Auto Range
  • DC voltage:60mV/600mV/6V/60V (±0.8%+5d),600V/1000V (±1.0%+5d)
  • AC voltage:60mV/600mV/6V/60V (±1.2%+5d),600V/750V (±1.5%+5d)
  • DC voltage:600µA/6000µA (±1.0%+2d),60mA/600mA (±1.2%+3d),6A/20A (±1.5%+5d)
  • AC voltage:600µA/6000µA (±1.2%+5d),60mA/600mA (±1.5%+3d),6A/20A (±2.0%+3d)
  • Resistance:600Ω/6KΩ/60KΩ/600KΩ (±0.8%+3d),6MΩ/60MΩ (±1.2%+3d)
  • Capacitance measurement:
    10nF/100nF/1000nF/10μF/100μF/1000μF (±3.0%+5d),10mF (±5.0%+5d) 100mF (±5.0%+30d)
  • Frequency (stall V or current stall):10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/10MHz (±0.3%+5d)
  • Frequency (stall Hz):10Hz/100Hz/1KHz/10KHz/100KHz/300KHz (±0.3%+ 5d)
  • Hz Duty:1%-99%(±2.0%)
  • Automatic shutdown : 15 minutes
  • Security level:IEC61010-1、 CATIII 1000V
  • Overload protection : Resistance stall as PTC

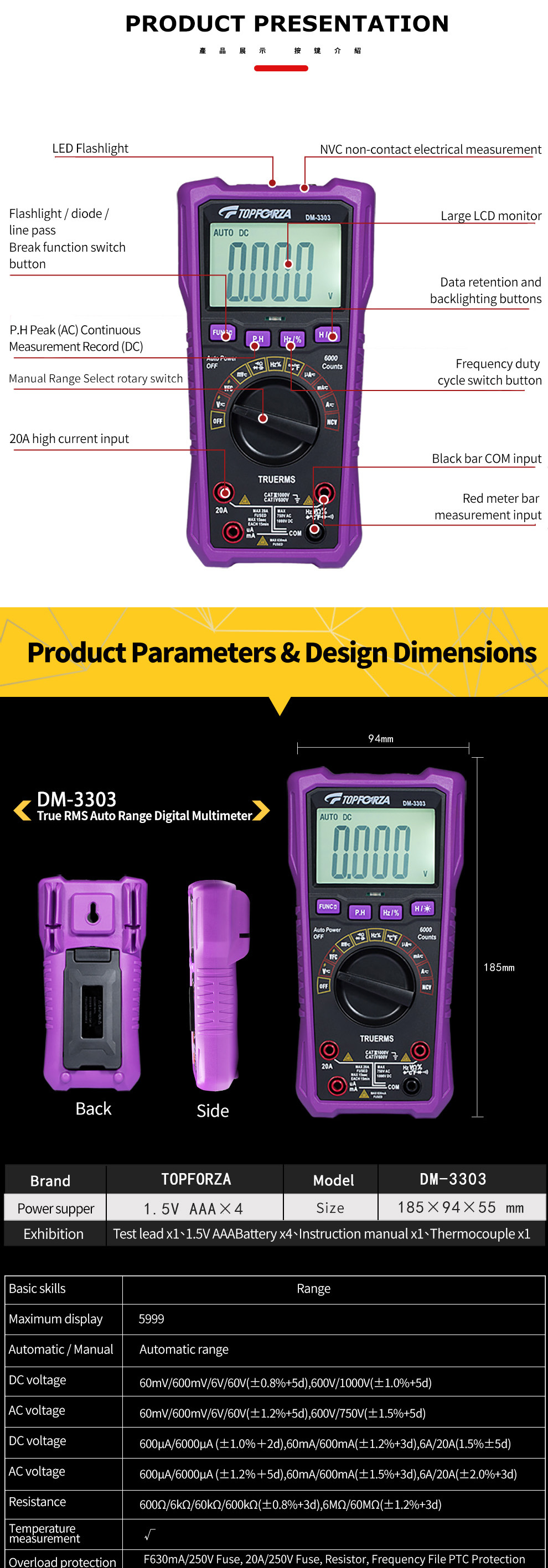

  • Size:185x94x55mm
  • Weight:337g
  • Power supply:1.5V AAA x 4

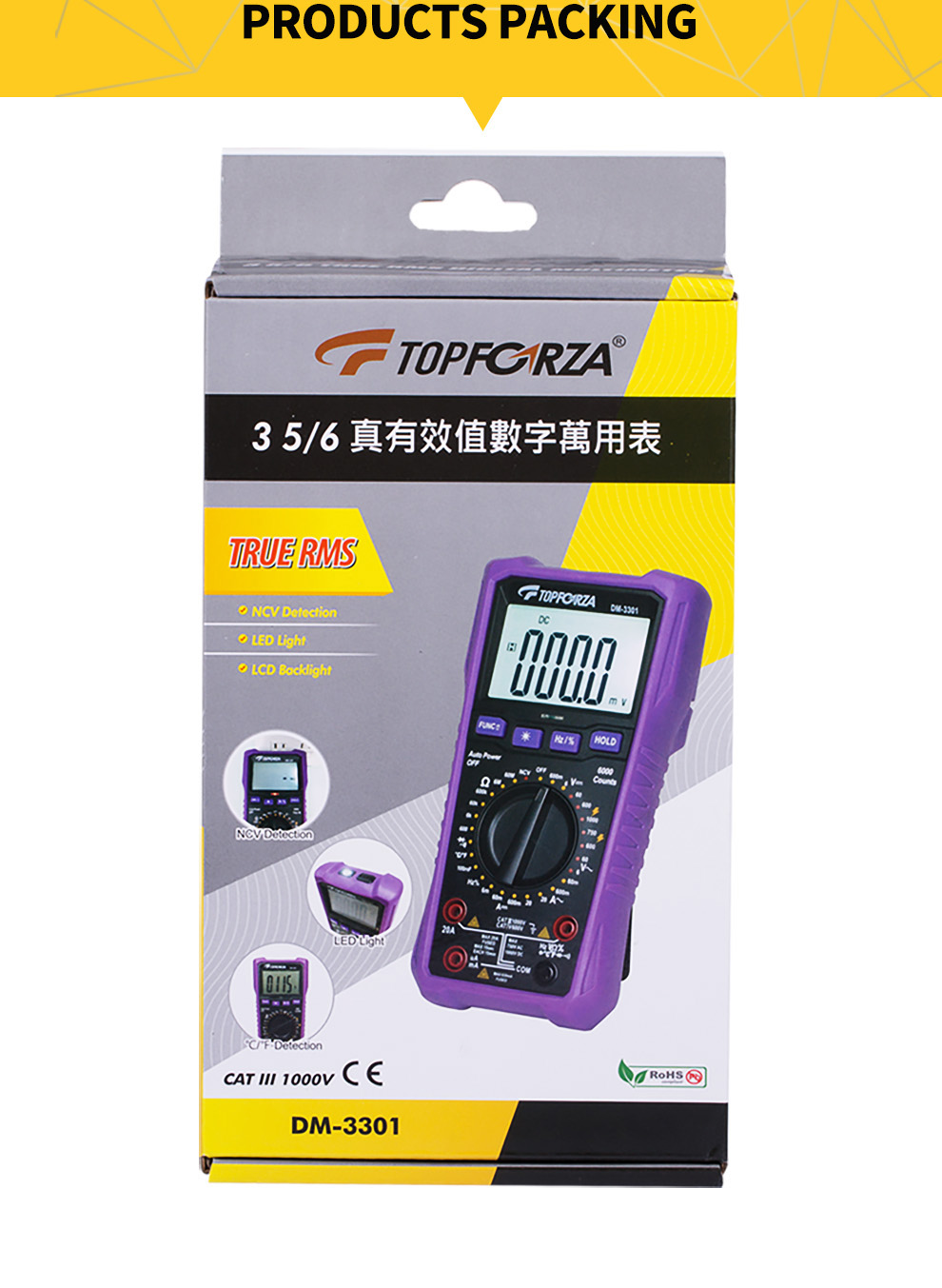

  • Exhibition:Test lead x 1 vice、1.5V AAA battery x 4、 Instruction manual  x 1、Thermocoupl x 1
