FT-6106
FIBER OPTICAL POWER METER
  • Designed for fiber optic cabling, fiber optic maintenance, acceptance, and inspection
  • Support optical wavelength: 850/1300/1310/1490/1550/1625
  • Highly stable light source output and accurate measurement
  • Large LCD panel display with clear value. Backlit display
  • Match the same ID function optical power meter, the power meter can automatically convert the same source wavelength 270Hz, 1KHz, or 2KHz. Three frequencies can be selected
  • The meter provides a charger port for rechargeable batteries
  • Automatically activate hibernate mode after unused for 10 minutes
  • The product contains a case for better carrying and storage

  • Wavelength calibration：850nm,1300nm,1310nm,1490nm,1550nm,1625nm
  • Resolution：+6～-60dBm(0.01dB),-60～-70dBm(0.1dB)
  • Accuracy：±0.2dB
  • Linearity：±2%
  • Type of sensor：LnGaAs

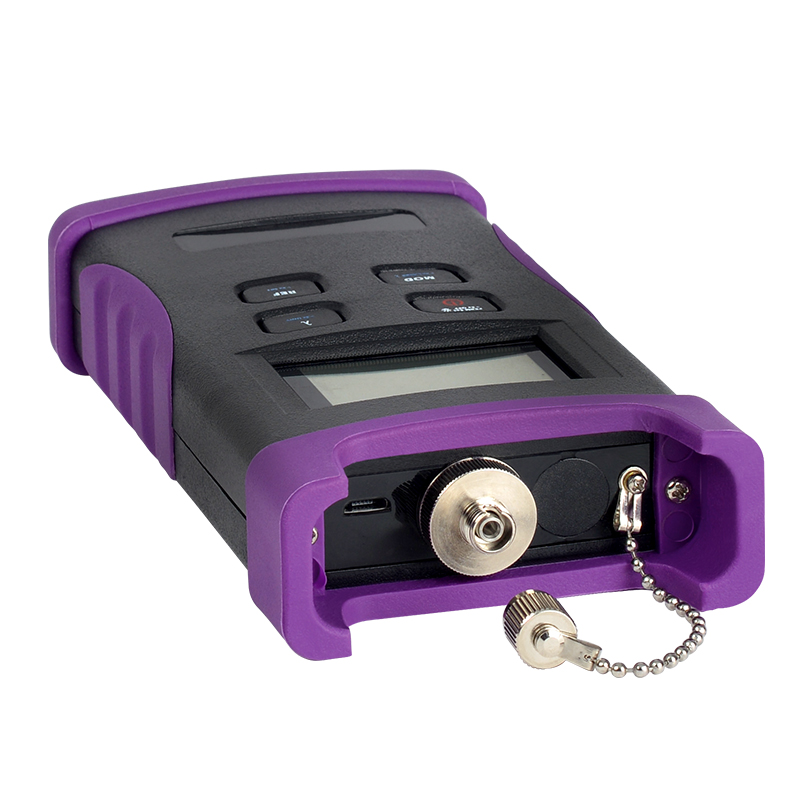

  • Fiber optic adapter：FC/Universal connectors
  • Reference setting：have
  • Wavelength response range：700～1700nm
  • Automatic frequency identification：270Hz/1KHz/2KHz(光功率>-30dBm)
  • Type of battery : 2 AA alkaline batteries or 2 rechargeable batteries
  • Battery life：>160H
  • Waterproof：Water repellent
  • Operating temperature：-10℃～+60℃
  • Storage temperature：-20℃～+70℃
  • Relative humidity：<90% Anti-condensation
  • Appearance：140x62x32 mm
  • Weight：174g

  •
